AYUCR
PC Interface Cable
Assembly Instructions
| Female 9 pin D-Sub connector |
| D-Sub Hood with hardware |
| 4 conductor cable |
| 3 pin Waldom connector |
| Crimp pins |
Building the Cable
The PC interface cable allows you to connect the Camera Controller to a PC serial port for programming the controller. It is very easy to build. You will need a soldering iron, solder, wire strippers and a small screwdriver.
Step 1: Cut off about 1" of the outer jacket at each end of the length of cable. The cable requires three conductors. You may use any three but the convention is to use the black, green and yellow wires. Cut off the exposed piece of red wire from each end. Strip about 3/16" of insulation from each wire of the remaining wires.

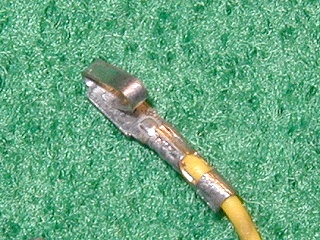

Step 2: Using needle nose pliers secure the a crimp pin to each wire at one end of the cable. The tabs on the crimp pins are designed with a split in them. One part of each tab secures the insulation and the other part make contact with the exposed wire. Do not over crimp or you may deform the wire and weaken the connection. If you purchased a cable with precrimped connections then you can skip this step.

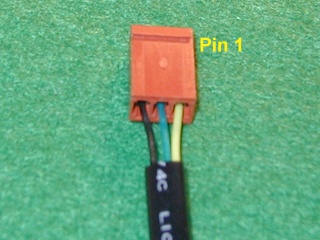

Step 3: Slide the crimp pins into the three pin connector in the order shown in the picture below. Each crimp pin has a little, raised catch that locks into the slots on the bottom of the connector. Pin 1 is on the right in the photo. Note that your connector may have two alignment tabs not shown in the photo. They should face up in this picture.
Step 4: On the other end of the cable solder the wires to the solder cups on the back side of the 9 pin connector as follows. The Pin numbers are marked on the connector
| Wire Color | Pin Name | Pin Number |
|---|---|---|
| Yellow | RxD | 2 |
| Green | TxD | 3 |
| Black | Gnd | 5 |

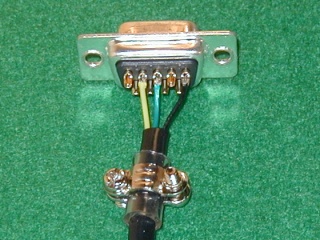

Step 5: Add the strain relief clamp to the cable about 1" from the connector using the two short screws provided as shown. If your hood kit does not include a plastic sleeve you can flatten the clamps with pliers to help them grip the cable better. You can also simply tie a knot in the cable near the connector and forget the clamps all thogether.
Step 6: Snap the hood over the connector and secure it with the screws and nuts provided.
That's it. If you were careful with the wiring the cable should work fine. Problems are almost always due to a miswired cable. Check your connections carefully.
